Connector
strip to strip connector
strip to driver connector
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |

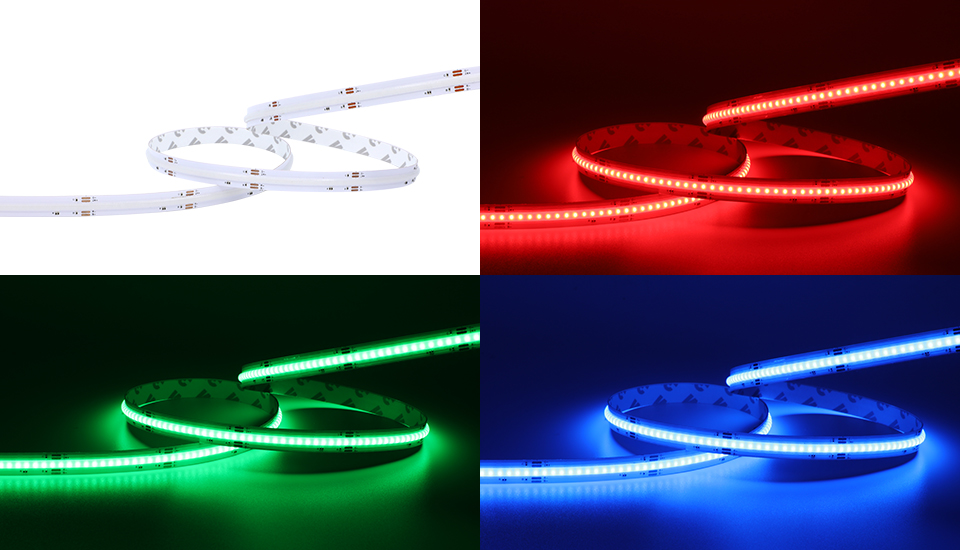

FE14C-P0-G1 COBRGB 24V840S W10L05
Description
- beam angle 180°.
- Efficiency 90 lm/w.
- Easy to install and preserve.
Parameters
- Dimension:5004±10mm
- Cutting unit:50±1mm
- Power:14W/m
- Voltage:DC24V
- Led Qty:840LEDs/M
- PCB:10mm
- CRI: >90
- IP:IP20
| LUMENS PER METER | |||||
| Product No. | FE14C-P0-G1 COBRGB 24V840S W10L05 | ||||
| Red | 620~630nm /200lm | ||||
| Green | 520~530nm /420lm | ||||
| Blue | 460~470nm /98lm | ||||
| Product No. | Order Code |
| FE14C-P0-G1 COBRGB 24V840S W10L05 | / |
| Note: ' * ' =MTO(make-to-order) | |
