Aluminum Profile
Aluminum Profile 1meters
913-01-1299-015
Aluminum Profile 2meters
913-01-1299-016
Basic parameters
| Material： | Aluminum alloy |
| Ohter： |
|
Bracket
Bracket
701-0107-038
Basic parameters
| Material： | Aluminum alloy |
| Package： | Ten |
| Other： | With screws |
End cap kit
front outlet end cap
723-0507-113
end cap without hole
723-0507-098
end cap bottom outlet
723-0507-098
end cap side outlet
723-0507-098
Basic parameters
| Material： | Silicon glue |
| Other： |
|

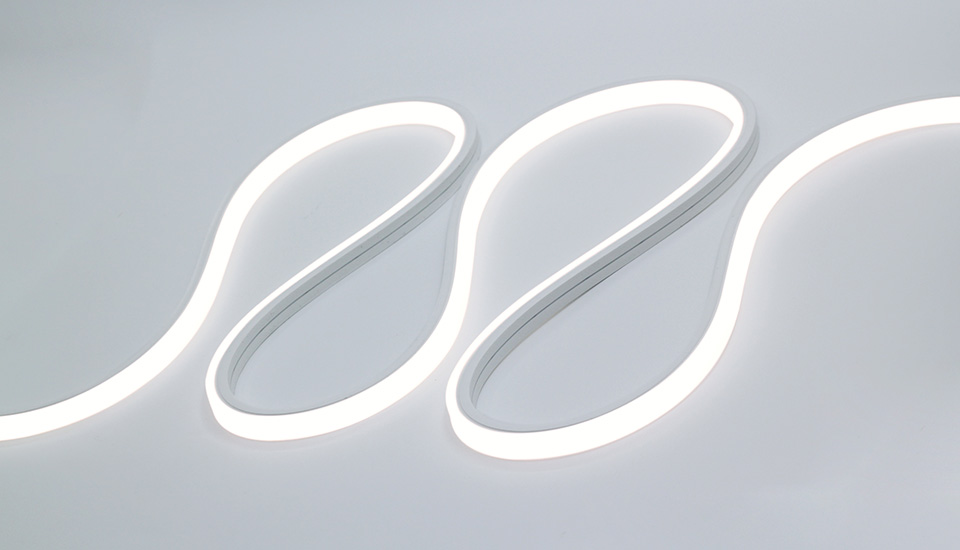

FEN14W-P7-G1 28LZ9x 24V180S 1010L05
Description
- Seamless and uniform light output, dot free
- Bendable at horizontal direction
- IP67 protection
- Robust housing with high quality silicon, UV proof for true outdoor application
- Easy installation with clips and bendable track
- Cut-able for ?exible application
Parameters
- Size:5050±5mm
- Cutting unit:33.3±2mm
- Power:14W/m
- Voltage:DC24V
- LED type:2835
- Led Qty:180LEDs/M
- CRI: >90
- IP:IP67
| LUMENS PER METER | |||||
| Product No. | FEN14W-P7-G1 28LZ9x 24V180S 1010L05 | ||||
| 2700K | 1000lm | ||||
| 3000K | 1030lm | ||||
| 4000K | 1060lm | ||||
| 6000K | 1060lm | ||||
| Product No. | Order Code |
| FEN14W-P7-G1 28LZ927 24V180S 1010L05 | 931-7-10-0-000011 |
| FEN14W-P7-G1 28LZ930 24V180S 1010L05 | 931-7-10-0-000012 |
| FEN14W-P7-G1 28LZ940 24V180S 1010L05 | 931-7-10-0-000013 |
| FEN14W-P7-G1 28LZ960 24V180S 1010L05 | 931-7-10-0-000016 |
| Note: ' * ' =MTO(make-to-order) | |
