Connector
Triangular application
Cross application
Right angle application
Basic parameters
| Rated voltage： | 12~24v |
| Rated current： | <4A |
| working environment： | moisture-proof ventilation -20 ~ 60 degrees environment |
| Temperature resistance： | -40-160℃ |
LED Quick connector-10mm
LD-TG-N10BB-2
LD-TG-N10XB-2
Base parameters
| Shell: | Polycarbonate |
| Contact chip: | Environmentally hardware material,high-precision copper |
| Rated voltage： | 0-36V |
| Rated current： | 5A |
Wire joint
LD-XC-JXD-D2
LD-XC-JXD-H2
LD-XC-JXD-T2
Base parameters
| Shell： | Polycarbonate |
| Contact conductor： | high-precision pure copper |
| Rated voltage： | 0-36V |
| Rated current： | 9A |
| Flame retardant rating: | accord with UL-94-V0 |

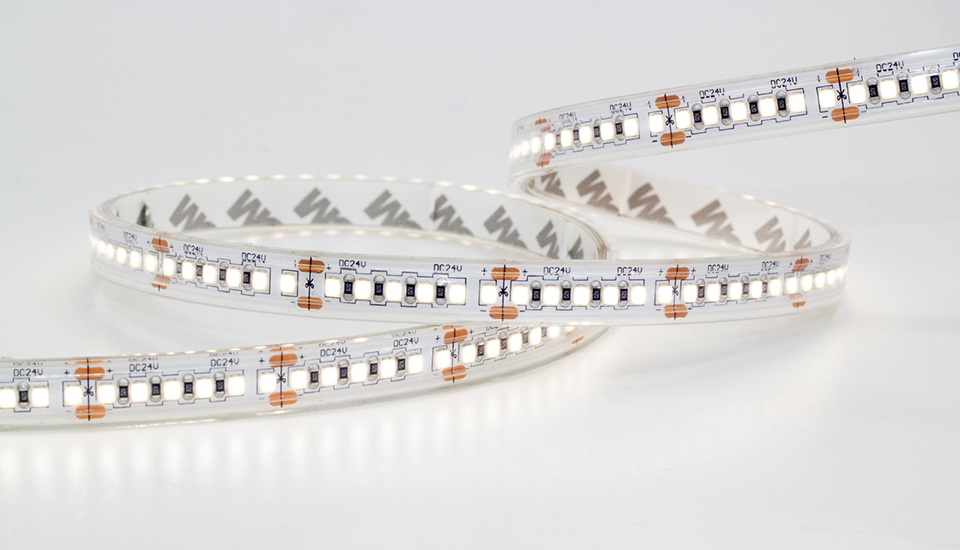

FH14W-P5-G2 28LZ9x 24V180S W10L05
Description
- High CRI; CRI>90
- High Efficiency, Up to 100lm/w
- High color consistency, within 5 steps SDCM(3 steps Optional)
Parameters
- Size:5010±10mm
- Cutting unit:33.3±1mm
- Power:14.4W/m
- Voltage:DC24V
- Led Qty:180LEDs/M
- PCB:12mm
- CRI:>90
- IP:IP65
| LUMENS PER METER | |||||
| Product No. | FH14W-P5-G2 28LZ9x 24V180S W10L05 | ||||
| 2200K | 918lm | ||||
| 2400K | 1008lm | ||||
| 2700K | 1062lm | ||||
| 3000K | 1134lm | ||||
| 4000K | 1188lm | ||||
| 5000K | 1278lm | ||||
| 6000K | 1242lm | ||||
| Product No. | Order Code |
| FH14W-P5-G2 28LZ922 24V180S W10L05* | 930-5-10-0-000099 |
| FH14W-P5-G2 28LZ924 24V180S W10L05 | 930-5-10-0-000100 |
| FH14W-P5-G2 28LZ927 24V180S W10L05 | 930-5-10-0-000101 |
| FH14W-P5-G2 28LZ930 24V180S W10L05 | 930-5-10-0-000102 |
| FH14W-P5-G2 28LZ940 24V180S W10L05 | 930-5-10-0-000103 |
| FH14W-P5-G2 28LZ950 24V180S W10L05 | 930-5-10-0-000104 |
| FH14W-P5-G2 28LZ960 24V180S W10L05 | 930-5-10-0-000105 |
| Note: ' * ' =MTO(make-to-order) | |
